Fxbox

Fxbox

1010music

$4,690.00 HKD Sale

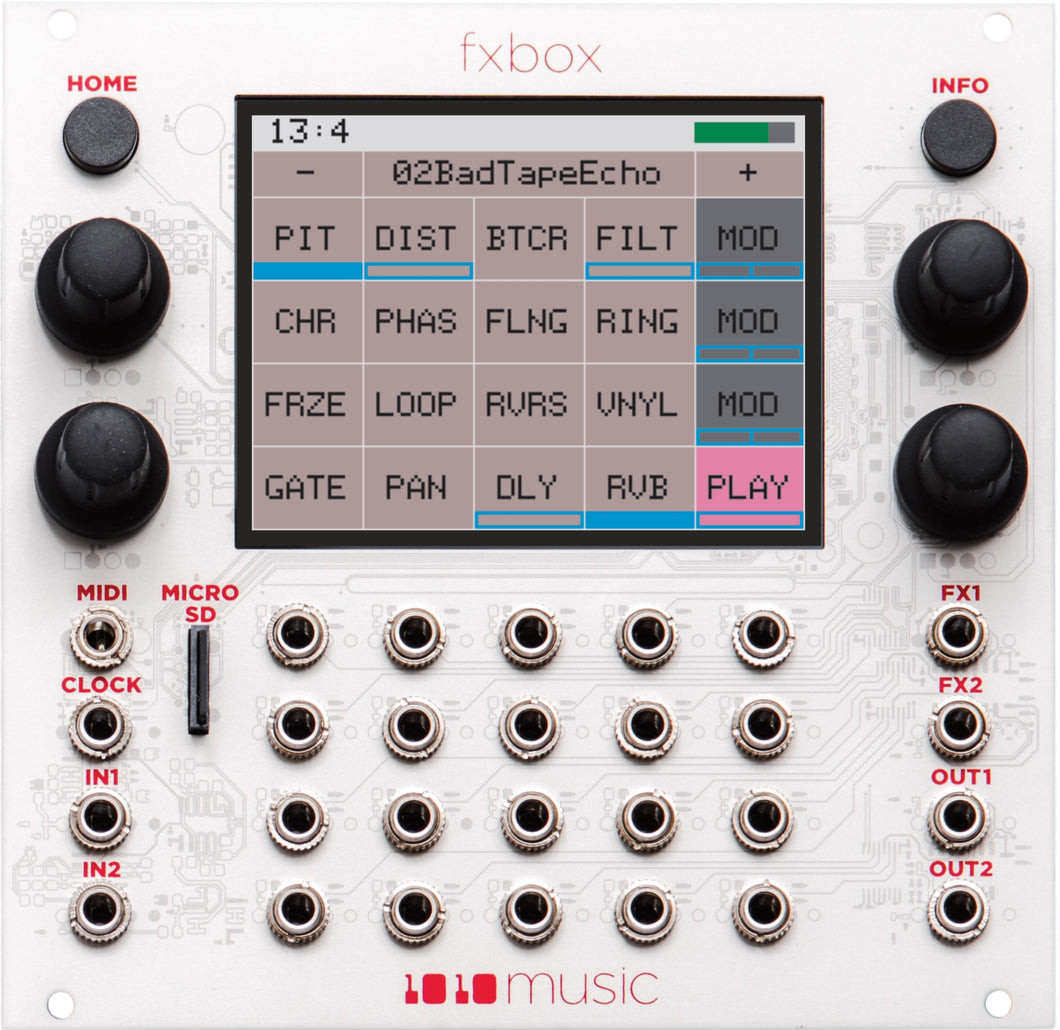

Fxbox is a 26HP eurorack module that delivers performance effects. Fxbox combines 16 realtime effects with a number of controls from the touch screen to continuous knobs and external modulators. Use the XY pad to control three different aspects of the sound at once. Use the internal step sequencer to create tricked out, remix style effects. Create complex layers and builds using the touch screen to isolate the individual effects.

Description

Fxbox is the performance effects module for eurorack. Fxbox combines 16 realtime effects with a number of controls from the touch screen to continuous knobs and external modulators. Use the XY pad to control three different aspects of the sound at once. Use the internal step sequencer to create tricked out, remix style effects. Create complex layers and builds using the touch screen to isolate the individual effects.

Fxbox is great for breathing life into pads and tones as well as introducing alternate timing and variety to rhythmic parts. It relies on an external clock signal or MIDI to perform in time with your music. Fxbox comes with 50 factory presets and an unlimited number of user presets.

The built in effects are as follows:

  • Pitch shift
  • Distortion
  • Bitcrusher
  • Filter
  • Chorus
  • Phaser
  • Flanger
  • Ring Modulator
  • Freeze
  • Loop
  • Reverse
  • Vinyl
  • Gater
  • Panner
  • Delay
  • Reverb

Inputs:

  • Stereo Input (In 1/2)
  • MIDI for timing and effects triggering
  • Clock for synchronization

Outputs:

  • Stereo Output (Out 1/2)
  • Reverb Wet Send (FX 1/2)

Series 1 Module Firmware Switching:

Because fxbox is a Series 1 module, you can swap out the fxbox firmware for other series 1 module firmware quickly and easily.  This means you can switch to bitbox or synthbox firmware simply by signing up at forum.1010music.com, downloading the new firmware and following the instructions on the forum.  You can also download the latest fxbox firmware to get new features and updates. It’s like getting three modules in 1 with available upgrades!

Technical Specifications:

  • 26 HP
  • +12V: 350mA
  • -12V: 0mA
  • 5V: 0mA
