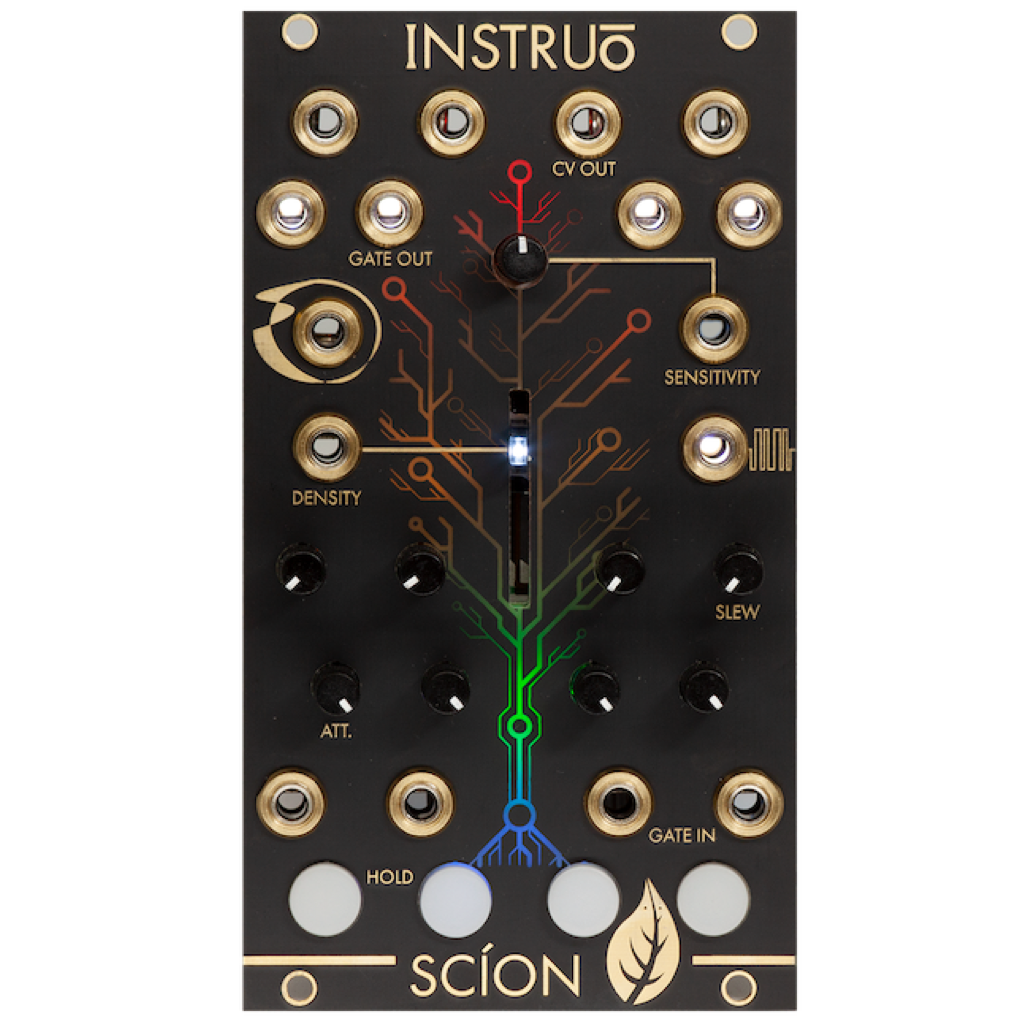

Scion

The Scíon is a biofeedback sensor built into a quad random voltage generator.

Based on the MidiSprout by Datagarden (https://www.midisprout.com/), It translates biodata from plants and other living things into music.

Tiny changes in electrical current from organic material stimulate CV and gate signals which can used to control any and every parameter of a patch, allowing to you create music in collaboration with your favourite houseplant!

Derived from the MidiSprout by Datagarden (https://www.midisprout.com/), the Scion is tailored for use within a eurorack environment. Additional functionality and control parameters have been added to make it a flexible and multi-use instrument able to fulfil a wide range of roles within a patch.

Generative Patching

Let your plants do the playing. Utilise the Scion at the heart of your patch and listen to what your plants have to say.

Harmonic Flourishes

Choose from the natural harmonic series or cycle of 4ths and let the Scion add harmonic interest to your patch.

Natural Timing

Randomness is an essential tool for adding interest to any patch. The Scion can be used to provide four channels of random CV and gate outputs.

Not random enough? Bursts of ratcheting gates at randomly timed subdivisions can be triggered.

Too Random? Use external cv control and timing information to tame the beast.

Interactive Performance

It’s not just plants, hook yourself up your modular system for direct interactive control over your patch.

14HP

Power

+12V: 90mA

–12V: 20mA

Depth: 27mm

• 3.5mm input jack for tens cable
• Two sets of sensor cables featuring sticky electrode pads or soft clips
• Gold touch plate for direct interface with bio-feedback sensor
• Four 0-5V CV outputs with independent attenuators and slew controls
• Four Gate outputs
• Four Gate inputs for triggering ratcheted subdivisions or S&H style clocking
• Four Hold buttons to freeze each channels current state
• CV controllable SENSITIVITY (0-5V range)
• CV controllable note DENSITY (0-5V range)
